How 3D printing can be a cool way to personalize your GPU (and PC)
One of the fields in which 3D printing has found a perfect fit is PC customization. If you read our article on why PC enthusiasts need a 3D printer, you will find that there are many things you can benefit from having a 3D printer. If you own a GPU and a PC, you can personalize it by 3D printing custom parts tailored to the exact specifications of your machine. It is cheaper than buying branded accessories, and you can 3D print parts in various colors, making your machines stand out because of the aesthetics they bring. Below are some interesting ways to personalize your GPU and PC using 3D printing.

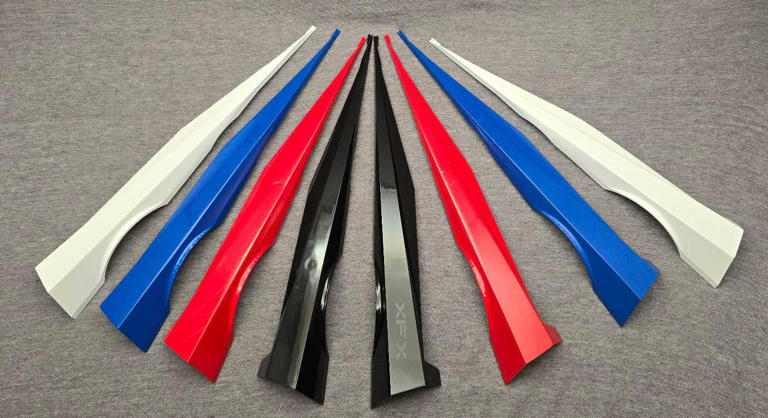

3D print wings for Quicksilver RX 9070-series
Add a personal touch to your 9070-series
If you own an RX 9070-series GPU, you can download the 3D print files from the company's drivers and installation guides page, customize them based on your requirements, and attach them to the card. After 3D printing, you will need the magnets for the final assembly. Currently, companies don’t have the files they are selling printed; you have to print them yourself, or you can send the files to a 3D printing service to print them for you.
When you download them, they come in three forms: two sides and a PCIE interface side. Each of those designs includes STEP, IGS, and STL files, which provide compatibility with various CAD and slicing programs. There are options for both one-piece wings for a seamless look and two-piece split wings for easier printing and assembly.
Custom PC cases
Create your own custom PC enclosure

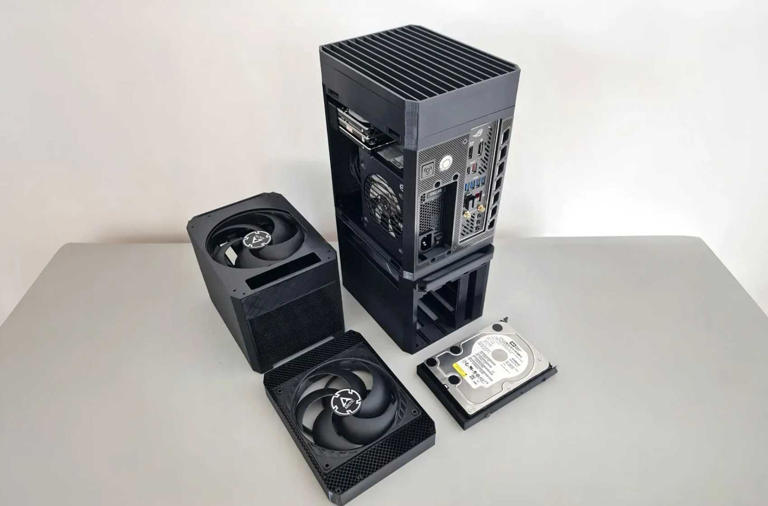

You can 3D print PC enclosures that suit your needs and cooling requirements. Many versions are available on 3D printing websites; a good example is the NAS ITX PC case with stackable expansions. It is easy to assemble, and the bays support up to 8x 3.5" + 3x 2.5" drives. It is also sturdy. The files are optimized for 3D printing on a 3D printer with a 210 x 210mm volume. It features a quiet vertical airflow with 3x 140mm fans and a customizable touch screen.
A premium version of the PC case has PCIE slot support and a capacity of up to 13 drives per caddy. It also comes with add-on fan modules and supports FlexATX PSU. To assemble, you need M3X20 (40pcs) screws and a Ø16mm power button. To 3D print all the parts, you need around 1-2kg of filament, which has been tested with PETG.

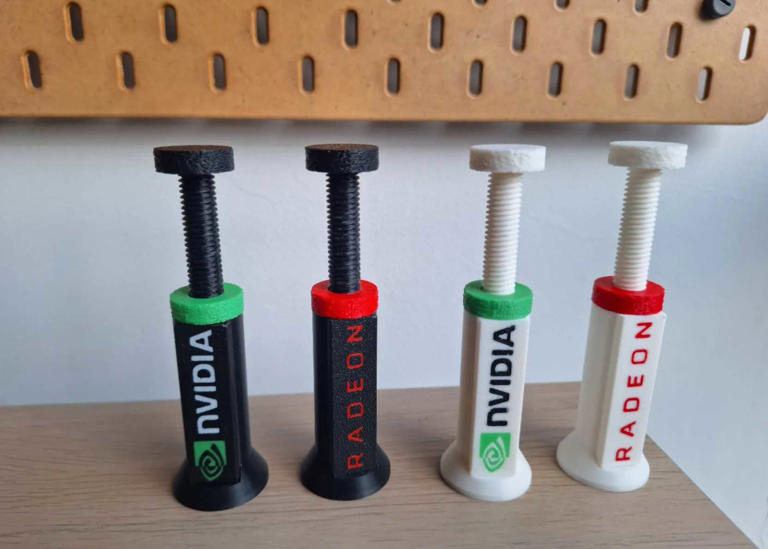

3D-printed adjustable GPU support
Ensure your GPU is securely in place while adding a professional finish
The 3D-printed GPU support helps support NVIDIA and Radeon graphics cards and prevents them from sagging. In addition to providing support, they add a personal touch to your build, as you can customize the colors and logos embedded in the design. They are fully adjustable, from 70mm to 125mm, ensuring compatibility with various cases and GPU configurations.
3D printing of the files is easy for most 3D printers, as they have a sturdy base and efficient use of the materials. It can fit into most PC setups, as the base diameter is around 20mm for Radeon and 30mm for NVIDIA, and this ensures there is solid support without cluttering your build.

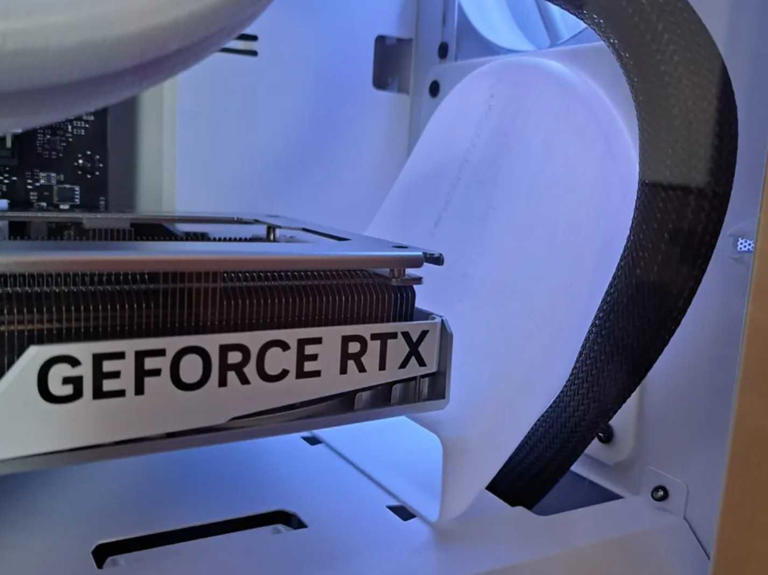

GPU Airflow Mod
Improve the air circulation in your GPU
The GPU airflow mod connects a 120mm front case fan to the underside of the GPU to ensure there is proper airflow. The design connects the fan with original screws, and it can fit easily without PC, but the designer recommends checking your dimensions first. Larger cases will fit well with no issues. You can check the dimensions in one of the photos in the gallery.
Supports are not required when 3D printing this model. You should print at a layer height of 0.16mm, two walls, and a 15% infill percentage. You can open the files in Bambu Studio, download them in 3MF or STL formats, and customize them in CAD software.

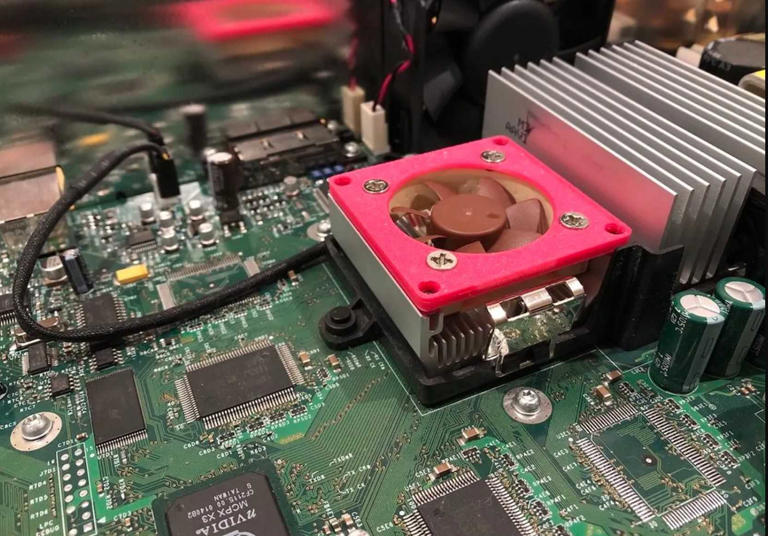

Fan adapter for GPU
Use a 40mm fan instead of the original one
Retro Frog designed the fan adapter for the original Xbox to allow the usage of a 40mm fan instead of the original fan, which is loud. It works only on the 1.0 version of the original Xbox. If yours is a later model with a larger heatsink of the GPU without a fan, you don’t need this. The designer recommends 3D printing at a resolution of 0.28mm and an infill of 20, and you need to use supports. You don't need to use supports if you 3D print with the flat side down. Assembly is easy; you attach a 40mm x 10mm fan to the side of the plate, and the fan will fit in the cutout well. Use the original screws to secure it to the heatsink. If you cannot 3D print the files, you can buy them from the retrofrog website.
Improve and customize your GPU and PC with 3D printing
As we have just seen, there are many things that are useful that you can 3D print for your GPU and PC setup. You can create functional upgrades specific to your machine, and the best part is that you can choose your preferred color and size. One of the most significant advantages of 3D printing is the ability to easily modify and replace the parts in case they wear out or break. You simply print a new one without relying on expensive components. This can save you money but also adds a layer of personalization that traditional components often lack.
