3 PC building mistakes I didn't realize I was making
When I first started building PCs, I used to assume I was doing almost everything right, especially since I was following YouTube build tutorials step by step. And honestly, once you have everything up and running, it's very easy to convince yourself that you've nailed the build. That all changed once I became obsessed with CPU and GPU temperatures, because at that point, it's no longer about whether your PC works, but how well it actually performs under load.
The more I looked at temperatures using MSI Afterburner while gaming, the more I realized my early builds weren't as dialed in as I thought. Even though nothing was technically wrong, my temperatures were higher than they should've been for the hardware I had. For instance, I had a 360mm AIO, but my CPU was still hitting close to 90C while gaming. That's when I started digging deeper and finally fixed some of the less obvious mistakes I made while building my PC.
I assumed more fans meant better airflow
But good airflow usually comes down to direction and pressure, not fan count
In my early days as a PC gamer, I always thought I could brute-force airflow by simply adding more fans to my case. In fact, I used to fill every available mounting point with another fan and call it a day. After all, more fans should mean more air moving through the case, which should translate to lower temperatures. But in reality, I was just creating a mess of airflow that didn't really go anywhere. Some fans were pulling air in while others were pushing it out in conflicting directions, and overall, these extra fans were disrupting any chance of a clear airflow path through my case.

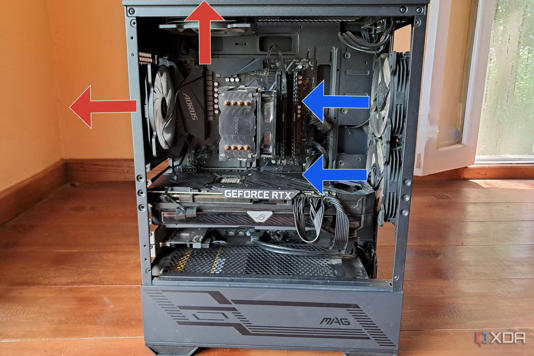

After some digging on Reddit, I eventually started to focus more on airflow direction instead of just fan count. Settling for a simple front-to-rear airflow path, with fresh air coming in from the front and hot air exhausting through the rear and top, made a bigger difference in CPU temperatures than adding more fans ever did. Nowadays, I also make sure my case maintains a slight positive pressure setup, meaning more intake fans than exhaust fans, which helps push hot air out more effectively while keeping dust buildup under control.

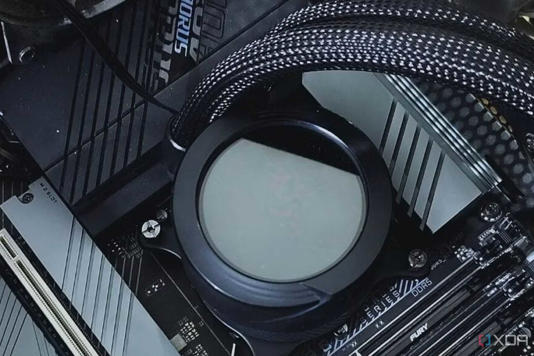

I blamed my cooler instead of checking the mounting
Even the best CPU coolers and thermal paste won't make up for poor contact
When I had the Ryzen 9 5900X, I dealt with high CPU temperatures so often that I immediately assumed something was wrong with my 360mm AIO or that I had gotten really unlucky with the silicon lottery. After all, a 360mm AIO should be able to comfortably keep my CPU below 80C while gaming, but that wasn't the case. I even spent $15 on Thermal Grizzly Kryonaut, hoping it would help, but that barely moved the needle. At that point, I was convinced the problem had to be the cooler or the CPU itself, because nothing else made sense.
What I didn't realize back then was how much mounting pressure and contact actually matter. If your cooler isn't seated evenly or the pressure isn't consistent across the CPU, you're not getting proper heat transfer, no matter how good your cooler or thermal paste is. The mistake I made during installation was not following a cross pattern while tightening the screws, which resulted in uneven mounting pressure. I realized this when I took the cooler off and looked at the spread pattern on my IHS. Once I reseated it properly, my temperatures finally lined up with what you'd expect from a high-end AIO.

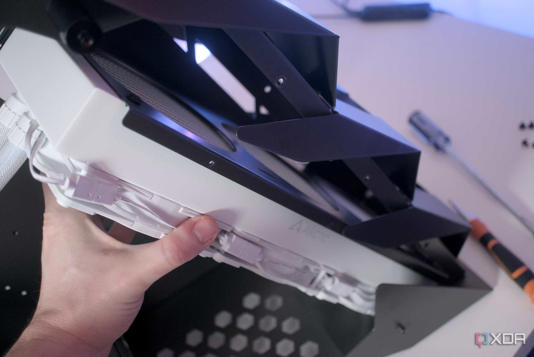

Front-mounting my AIO didn't help my GPU
The GPU ends up getting warmer air from the radiator
I've seen many people mount their AIOs at the front of the case, which is probably why I realized this mistake a bit too late. There's nothing inherently wrong with a front-mounted AIO setup, and in fact, it can help lower CPU temperatures since the radiator gets direct access to fresh intake air. However, that usually comes at the cost of higher GPU temperatures, since your card is getting warmer air that has already passed through the radiator. This can be a problem while gaming, especially if your GPU is already brushing against its thermal limits.
I didn't notice this right away because my CPU temps looked great, especially after getting the mounting right. But once I started monitoring GPU temperatures, the trade-off became obvious. Despite having a triple-fan cooler with a beefy heatsink, my GPU hovered around 80C while playing AAA titles. Moving the radiator to the top made a noticeable difference immediately, since my GPU was finally getting fresh air directly from the front intake fans. This setup also helps lower overall case temperatures, allowing other components like your PCIe 5.0 SSDs to run a bit cooler.
Some mistakes aren’t obvious until you start monitoring temperatures
If there's anything I've learned from building multiple PCs over the past decade, it's that you don't realize some of the mistakes you make until you see your CPU or GPU temperatures climb for no obvious reason. That's usually when you stop assuming everything's fine and dig deeper into what’s actually going on. Fortunately, none of the issues I faced required new hardware to fix, even though I wasted money on a premium thermal paste. More often than not, the problem isn't the hardware you bought, but how you've put it together.
