SPECIFICATIONS

Wireless connection: Windows PC/iPad/android

Wired connection: Windows PC software connection

Voltage: 90-130V or 190-240V

Use for: stage,concert , meeting and so on

Type: Mixers

Silent marshalling: 6 groups

Push: 13 ALPS 100mm electric

Plug: American Plug OR European Plug

Origin: CN(Origin)

Network: TCP/IP Ethernet for PC and ipad applications

Model Number: DM16

Microphone/Line Input: 1-12(Local)

Maximum input level (XLR/TRS): +19dBu/+29dBu

Input impedance (XLR/TRS): MIC>5 K ,LINEMIC>10 K

DCA grouping: 6 groups

Certification: CE

Bundle: Bundle 1

Brand Name: PaulKitson

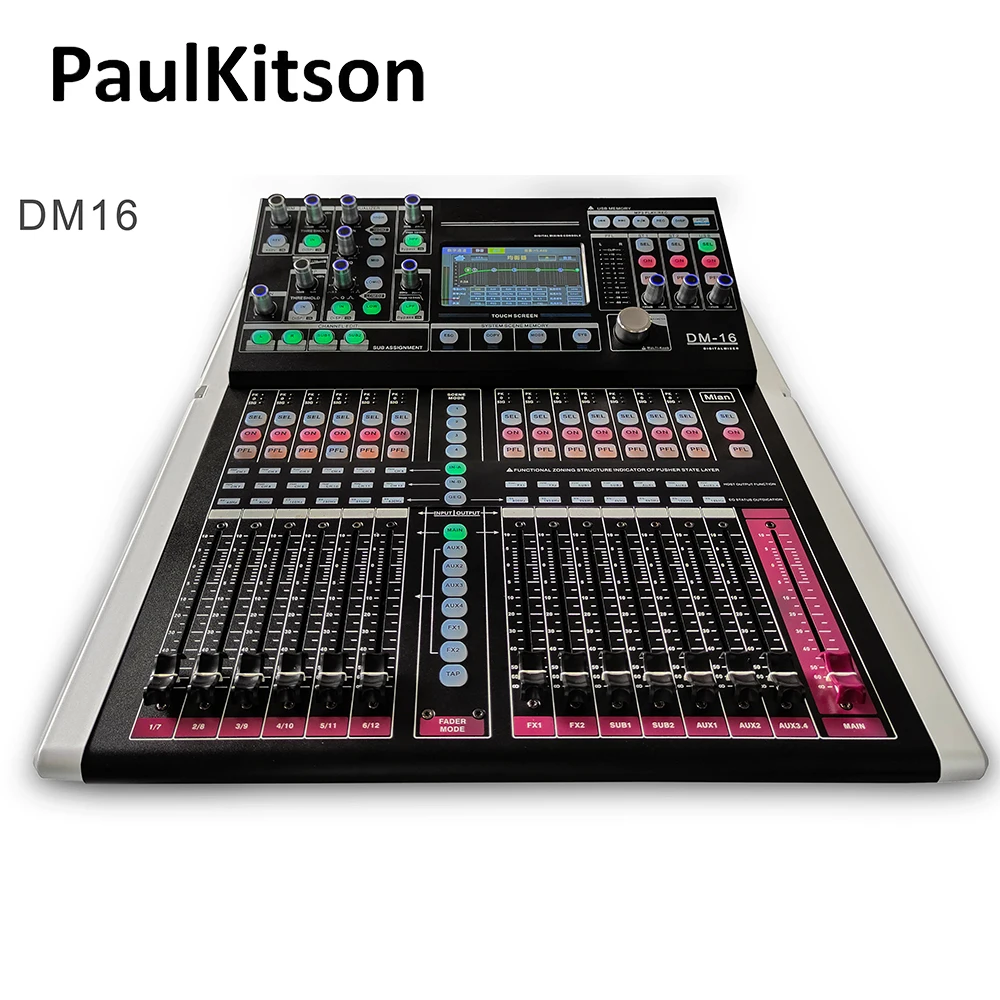

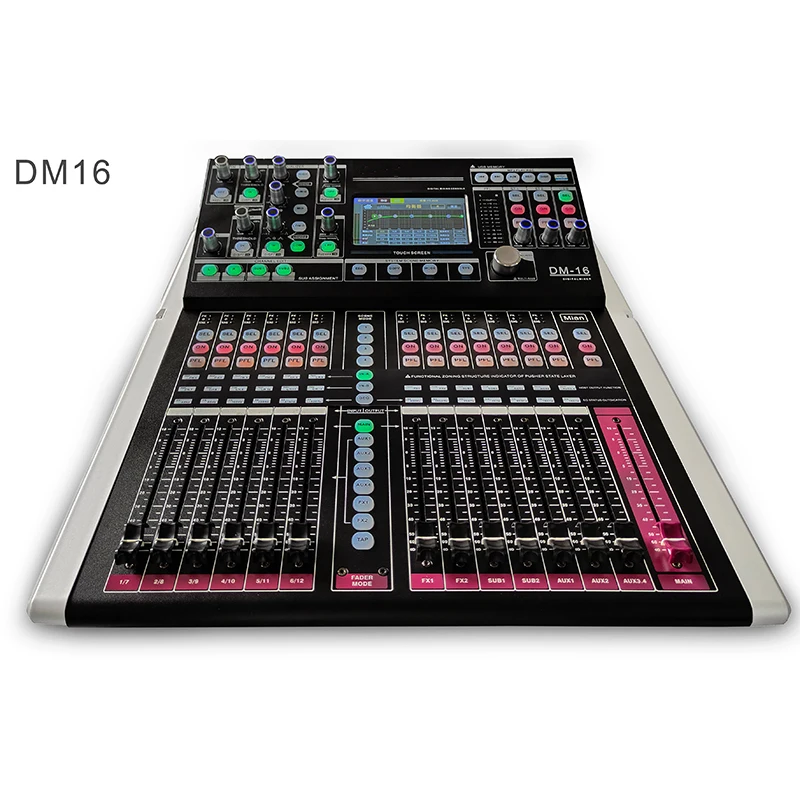

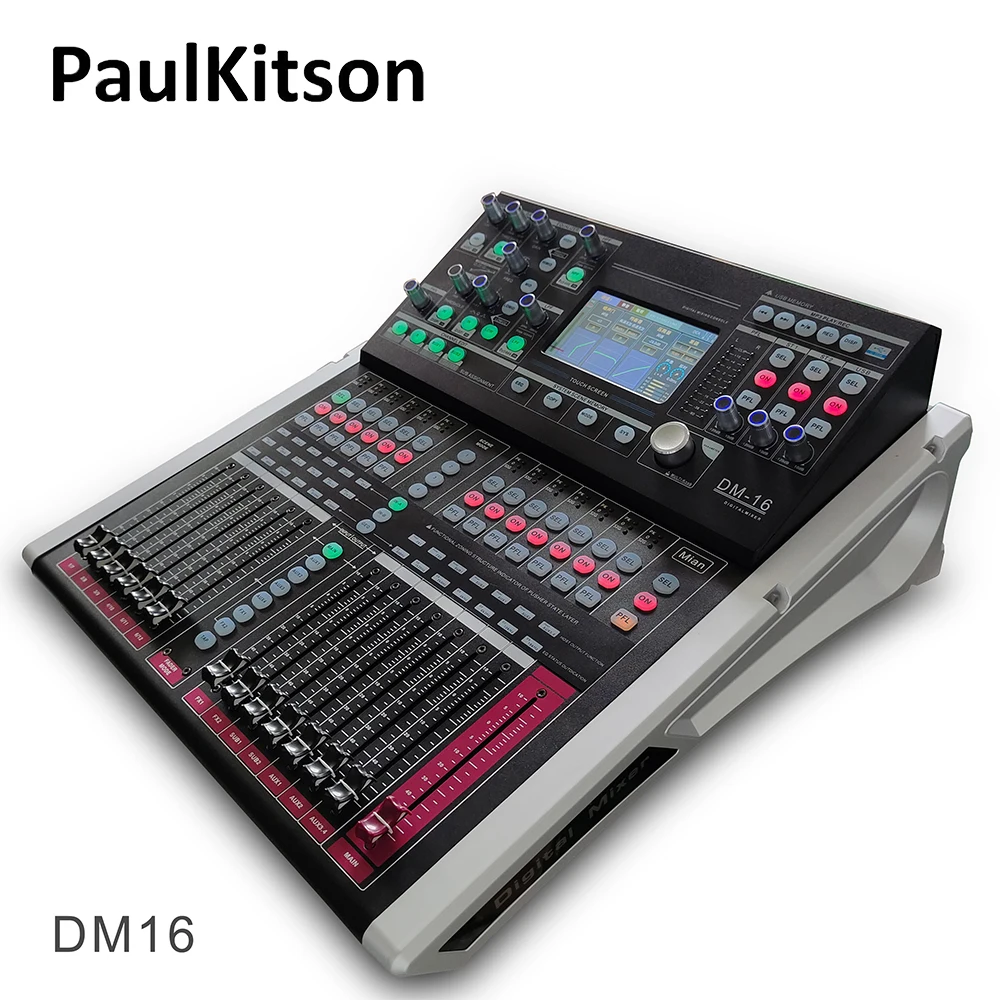

Paulkitson DM16 18Channel Professional Digital mixing Dj Mixer Audio Console Mixer Professional Stage Performance

operating system:

Based on Linux operating system development, no fear of viruses, safer and more stable operation

4-core CPU processor, 1G main frequency, 17 seconds of rapid startup, faster running speed

Chinese and English operation interface, free switching, easier to use

Shutdown parameters are automatically saved, so there is no need to worry about data loss

input Output:

18 signal inputs

12 MIC/Line inputs, 2 groups of 3.5 Lotus stereo inputs, 1 group of digital inputs: sound card, MP3, AES digital input/output

10 signal output

Main output L, R, 2 SUB grouping outputs, 4 AUX1-4 auxiliary outputs, 1 headphone monitor output

Product parameter

•･MIC input gain adjustment (smooth digital gain, participate in saving to the scene)

•･Mic input channel (Linked) parity or AB joint modulation

•･+48V phantom power (MIC channels can be opened and closed independently, participating in saving to the scene)

•･Independent PAD attenuation switch for Mic input channel

•･Each input channel has built-in compressor, noise gate, high and low pass filter, 5-band parameter equalization, delay, channel sound image balance adjustment

•･Quick copy function of channel parameters

•･Input and output EQ ON/OFF

•･Multi-function knob

•･Each channel has a multi-function menu, mute and monitor

•･The channels are equipped with 100MM electric faders, signal and peak lights (14 ALPS electric faders)

•･Independent physical fader control for input and output

•･Fader function supports user-defined layers

•･Two fader layer page turning buttons (input page turning, output and effect fixed faders, the operation is more convenient and quick)

•･6 DCA groups, 6 silent groups

•･Integrated feedback suppressor management

•･Built-in signal generator (pink noise/sine wave/white noise), which can be customized to output from any one or more output channels

•･With real-time spectrum RTA function (color can be edited)

•･Scene mode editing supports Chinese input method

••･AUX output (pre/post fader) can be set

•･Each output channel processing: high and low pass filtering, 13-band parametric equalization (GEQ supports manipulation on the fader), compressor, delay, phase

•･Stereo digital recording function

•･Built-in sound card (mobile phone, IPAD, MP3, PC direct playback, recording)

•･4 shortcut scene recall modes, 100 scene storage, customizable scene name, support for Chinese input, seamless scene switching, no sound interruption

•･Two independent DSP effects are built-in locally, preset multiple effect modes for users to use directly

•･FX effect foot switch interface

•･12V output interface for external lighting equipment

•･Restore factory settings with one key

•･Support 232 central control

•･Multi-operating system control software (IOS system, Android system, WINDOWS system)

•･ Support wired network port adjustment (or external router wireless adjustment)

•･5-inch high-definition capacitive touch screen
