SPECIFICATIONS

Viewing Angle: 85/85/85/85 (Typ.)

View Direction: Symmetry

Treatment: Hard coating

Support Color: 16.7M 50% NTSC

Storage Temperature: -30 ~ 80°C

Size: 8.8

Response Time: 30 (Typ.)(Tr+Td)

Product Type: TFT

Pixel Format: 1920X480(RGB) 222PPI

Outline Dim: 231.3(H)X64.3(V)X6.4(D) mm

Origin: Mainland China

Operating Temperature: -20 ~ 70°C

Light Source: WLED , 30K hours , W/O Driver

Frame Rate: 60Hz

Display: LCD

Contrast Ratio: 800:1 (Typ.) (TM)

Configuration: RGB Horizontal Stripe

Certification: CE,RoHS

Brand Name: Gesight

Bezel Area: 221.9(H)X57.7(V) mm

Active Area: 218.88(H)X54.72(V) mm

Attention Please:

Some customers think the display can be directly connected to HDMI without a board, that`s impossible! It must need a drive board to work properly.

Please read the product description carefully.

Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.

Different products collocations have different package, please confirm the shipping cost with us when place an order.

(4~6 days for most countries and area)

For more specifications, such as display datasheet, IC datasheet, initial code, please contact us.

Drawing and Parameters

Datasheets and code are available for most of our display products, feel free to consult.

Features:

HannStar Display model HSD088IPW1-A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 8.8 (1:4) inch diagonally measured active display area with (480 horizontal by 1920 vertical pixel) resolution.

1. Plug & play, easy to use: This is a drive-free display monitor. 1x mini HDMI and 1x micro USB ports. HDMI supports data and signal transmission, one USB for power supply.

2. Windows & Mac OS system plug and play, no program or software support is required. Adjustable horizontal and vertical screen display in Windows system.

Product Model:

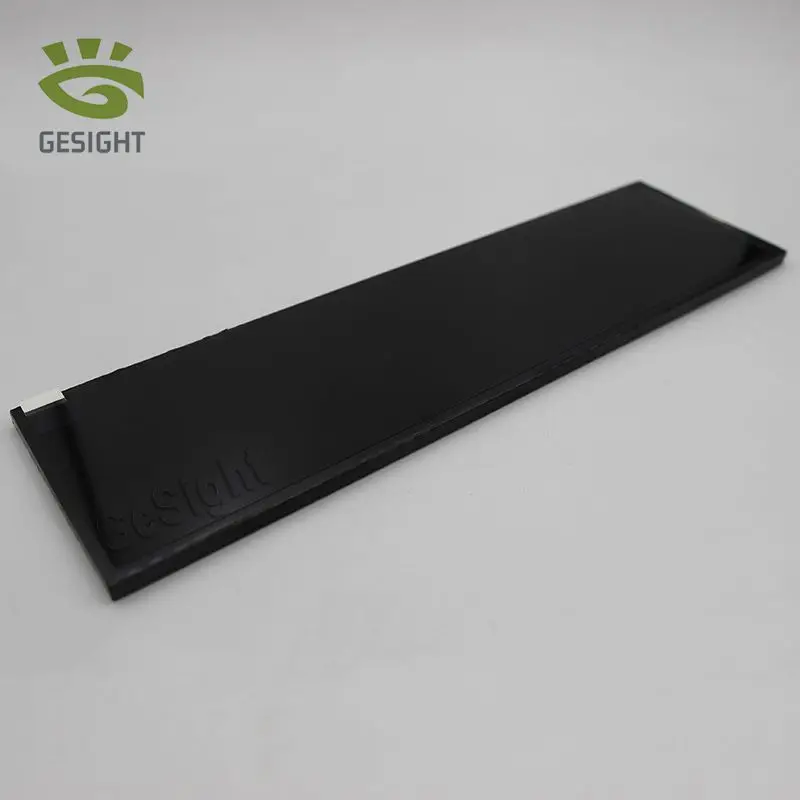

Only 8.8 Inch LCD:

1*8.8 inch LCD (No Case)

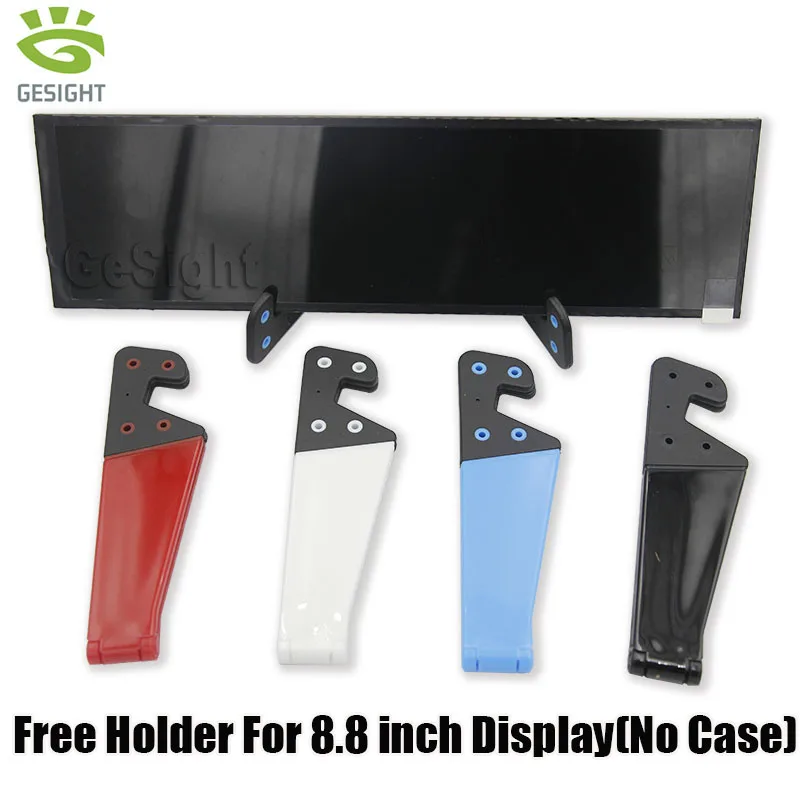

1*Holder (free send for every order of 8.8 inch lcd)

(The 8.8 inch LCD needs the driver board to use it, just sold separately for customers who need to replace their screens)

Driver Board:

1*Driver Board With Brightness Control

(The driver board is use for 8.8 Inch display, just sold separately for customers who need to replace their driver board)

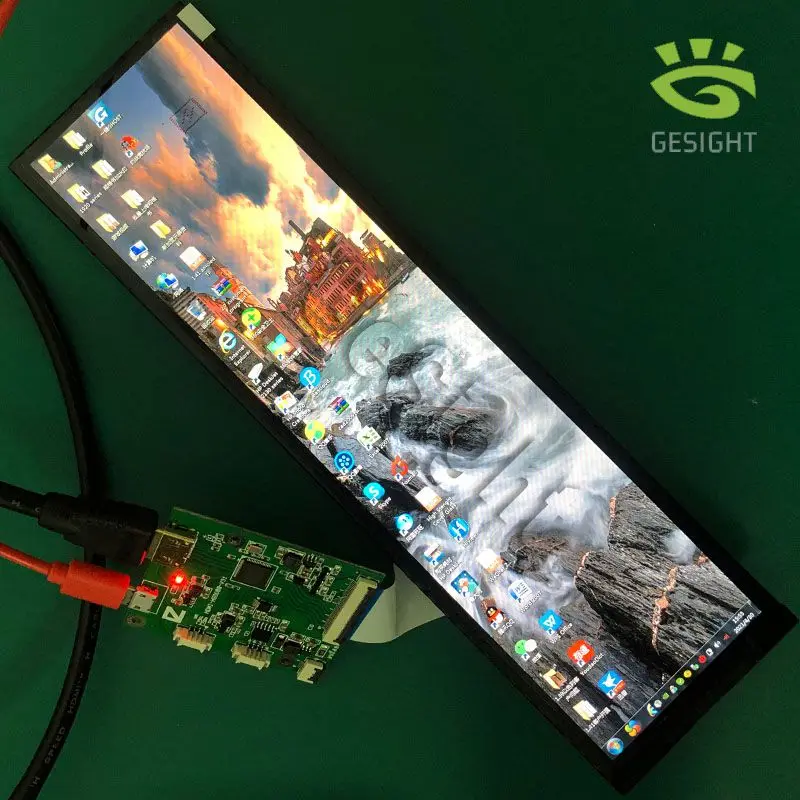

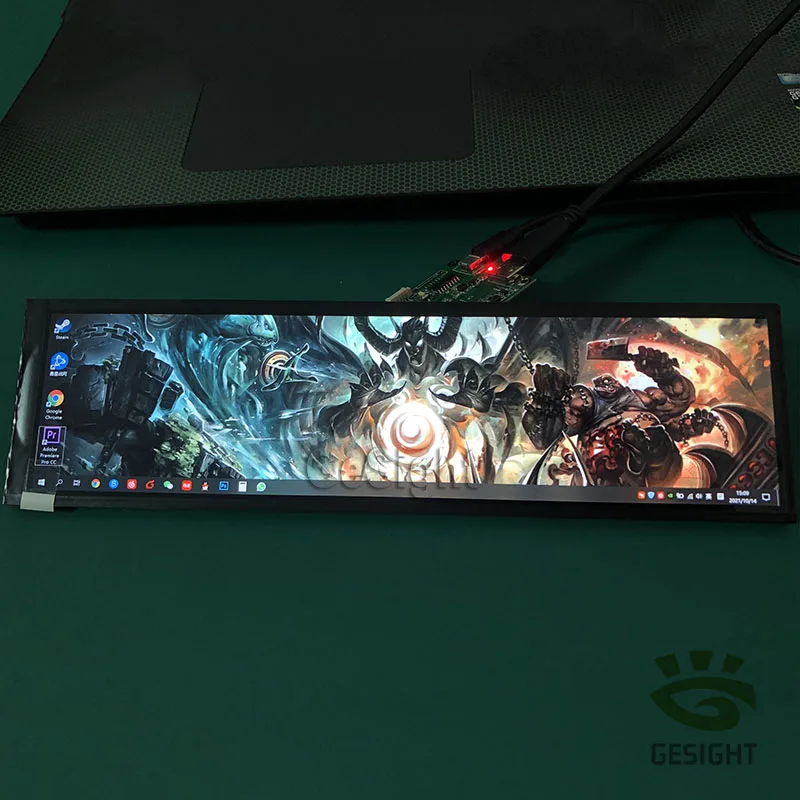

LCD With Board:

1*8.8 inch LCD (No Case)

1*Driver Board With Brightness Control

1*Connector Cable

1*Holder (free send for every order of 8.8 inch lcd)

Full Kit:

1*8.8 inch LCD (No Case)

1*Driver Board With Brightness Control

1*Connector Cable

1*Power Switch USB Cable

1*HDMI Cable

1*Holder (free send for every order of 8.8 inch lcd)

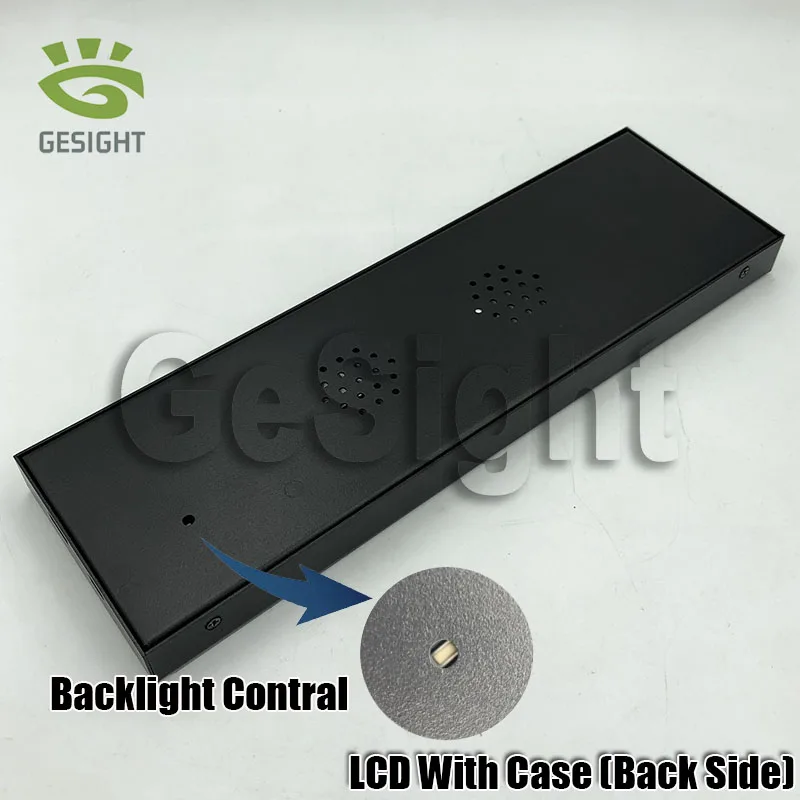

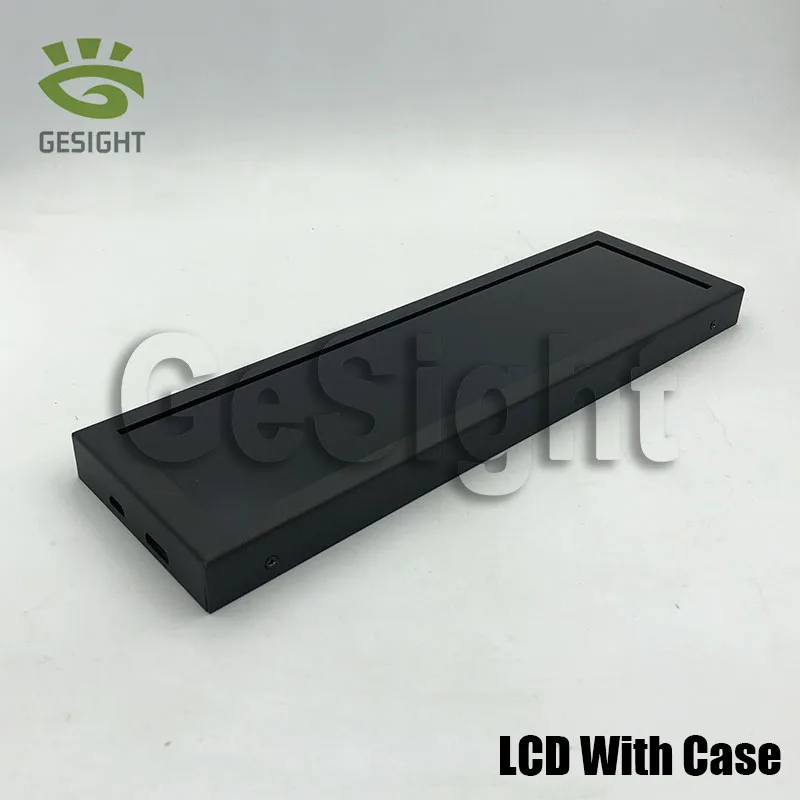

LCD With Black Case:

Full Kit+ Black Case

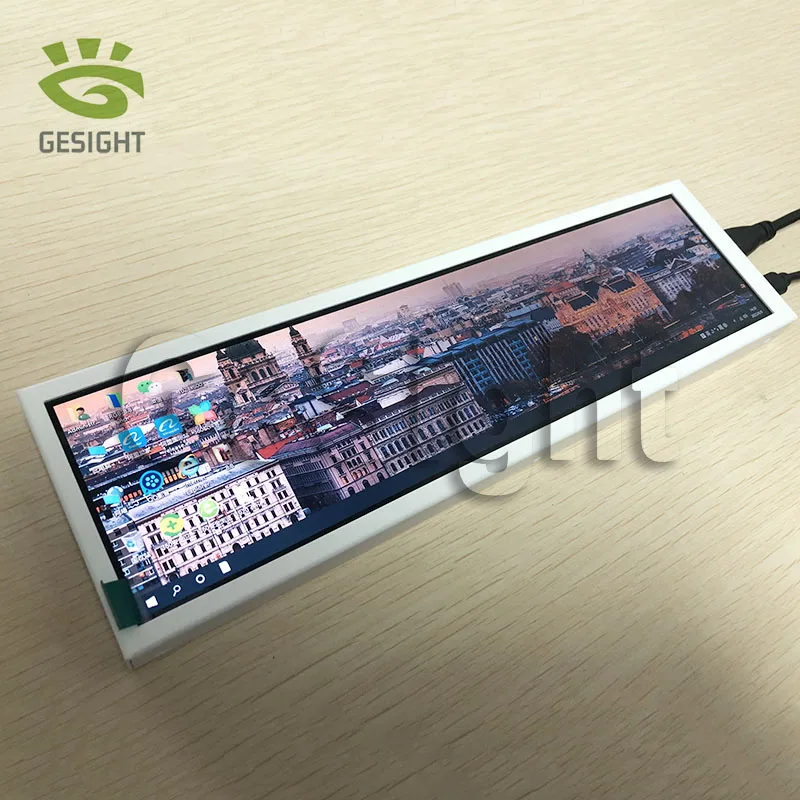

LCD With White Case:

Full Kit+ White Case

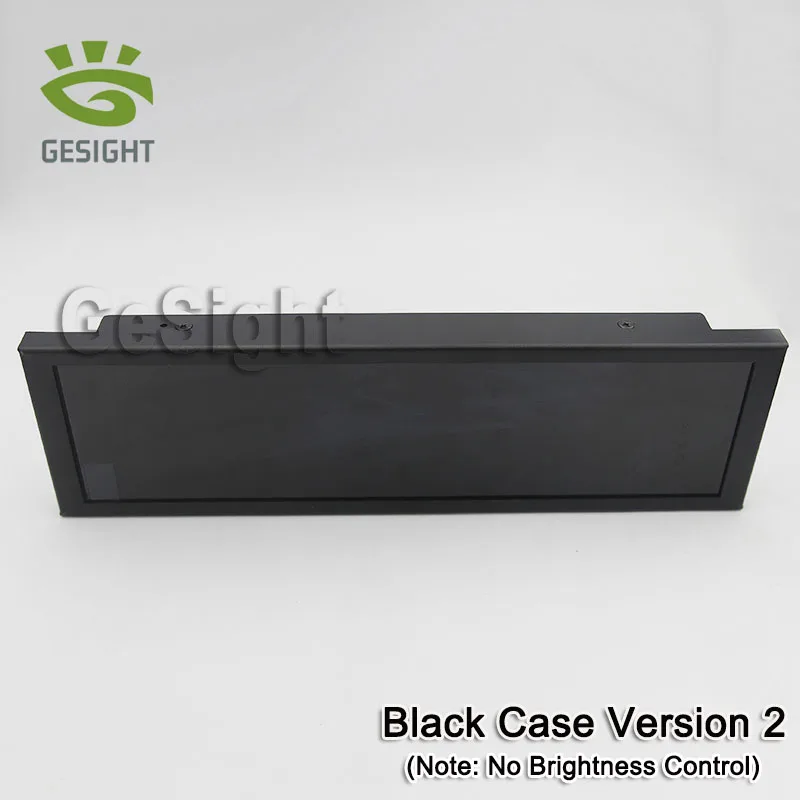

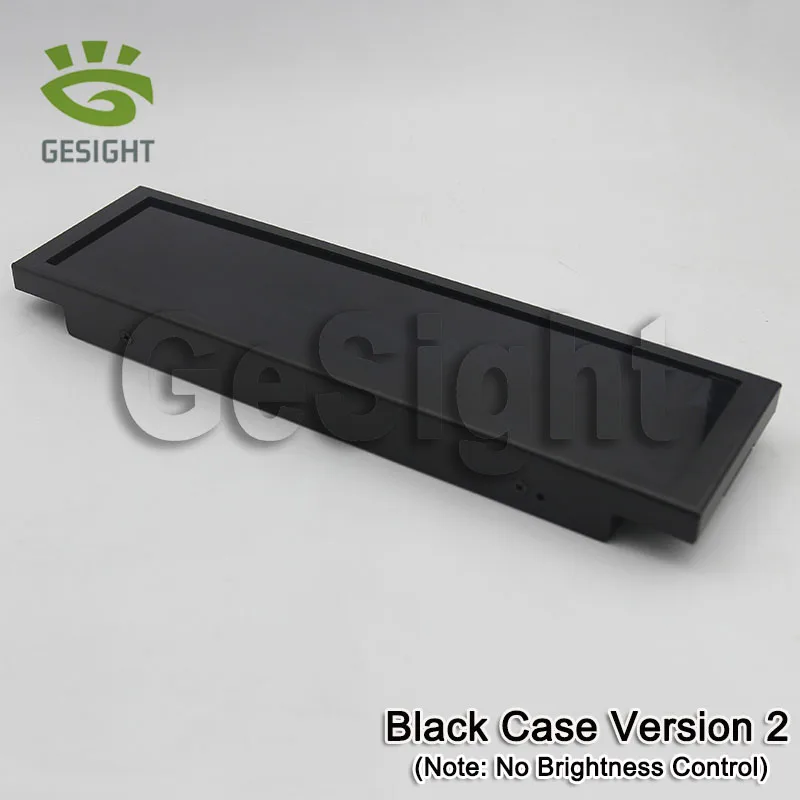

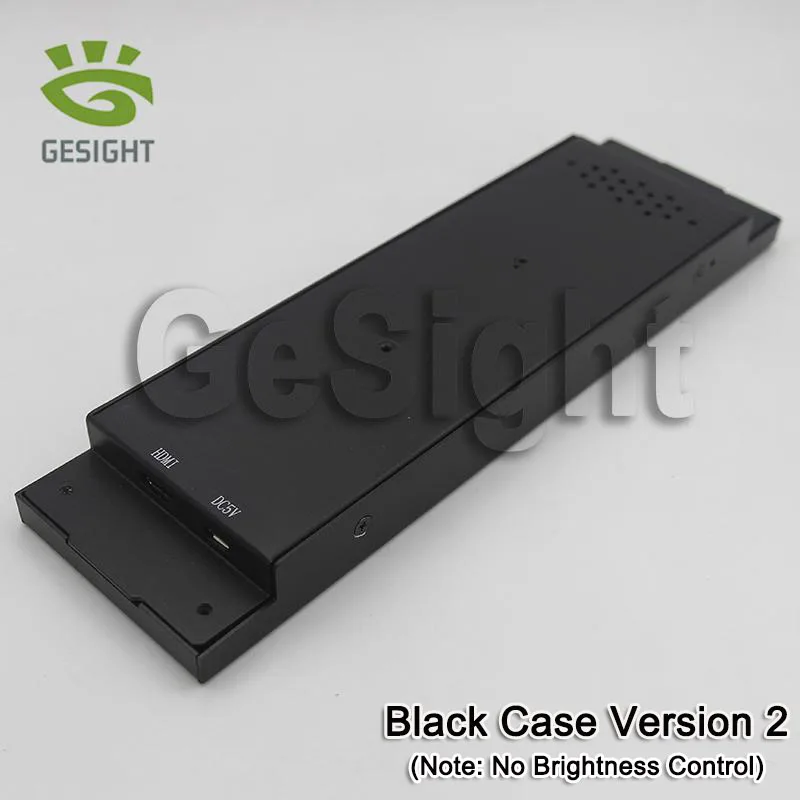

Black Case Version 2:

1*8.8 inch LCD

1*Black Case

1*Driver Board(No Brightness Control)

1*Connector Cable

1*Power Switch USB Cable

1*HDMI Cable

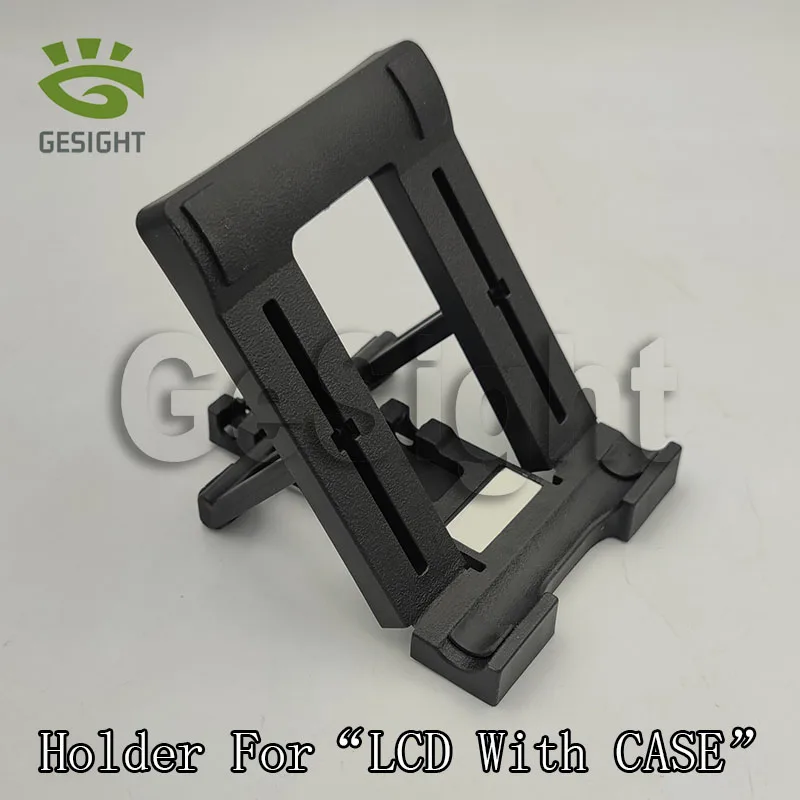

1*Holder (Holder for Case)

NOTE: The driver board in "Black Case Version 2" does not have the brightness control function.

Warm Tips:

1. It only can support HDMI from PC/Raspberry, don't connect it to phone.

2. The display needs to be used with the driver board, it can not directly connect to your computer or Raspberry (If you already have a driver board, you can choose to buy the screen separately)

3. If customer buy "LCD With Case", we will also send the free HDMI Cable and the USB Cable(with power switch).

4. We will test the display before we send it out, so if you can not use it normally when you receive the parcel, pls contact us at once, it may your computer not set up correctly.

(Refer to the customer case at the bottom of the description)

5. If you want to connect your Raspberry, pls contact us, we can send you the config.txt, you can refer it to set up your own Raspberry.

6. Please connect it directly to your computer, if you use the adapter, it may cause voltage instability and the picture may be blurry.

Customer Case

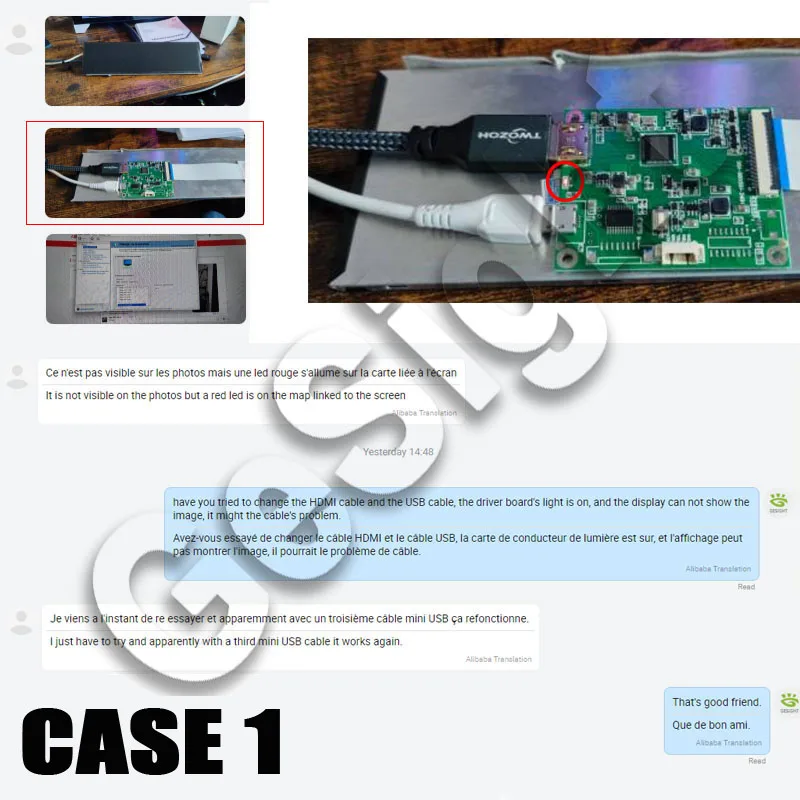

Case 1:

The customer bought "LCD With Board" in our store and used his own cable, but found it could not work. After changing the new cable, it could work.

Case 2:

There is a problem with the HDMI slot of the customer's host computer, which leads to the wrong color of the display. After the slot is replaced, the display will work normally

This display is used on Automotive, Streaming rearview mirror, Electronic bar or others.

Gesight is a high-tech company specializing in OLED, LCD displays. Integrated with display marketing andsales,customized LCD OEM manufacturing, driver board development, customized TP, etc.

After six years of effort and development, we have grown up to a certain size, now we have a service team with excellent service quality, professional technical service.

After several years of steady development, Gesight have served hundreds of customers all over the world, including big companies such as Bosch, Nokia, Garmin, Circuits, and countless small and medium-size companies or DIYers.

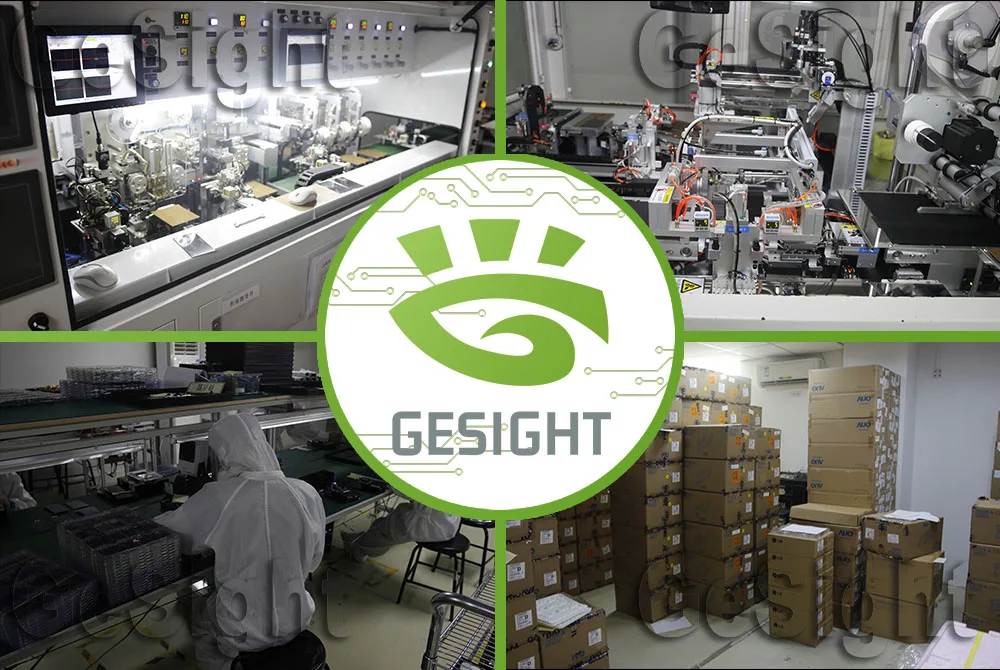

OLED/LCD OEM Factory
